Sustainability
Integrated, industrial-grade, repairable batteries
Battery modules are serviced, not scrapped. LFP chemistry backed by a 7-year warranty means the unit outlives its first battery — and the second one after that.
New — EGA Series
The most sustainable
The most sustainable
battery GPU.

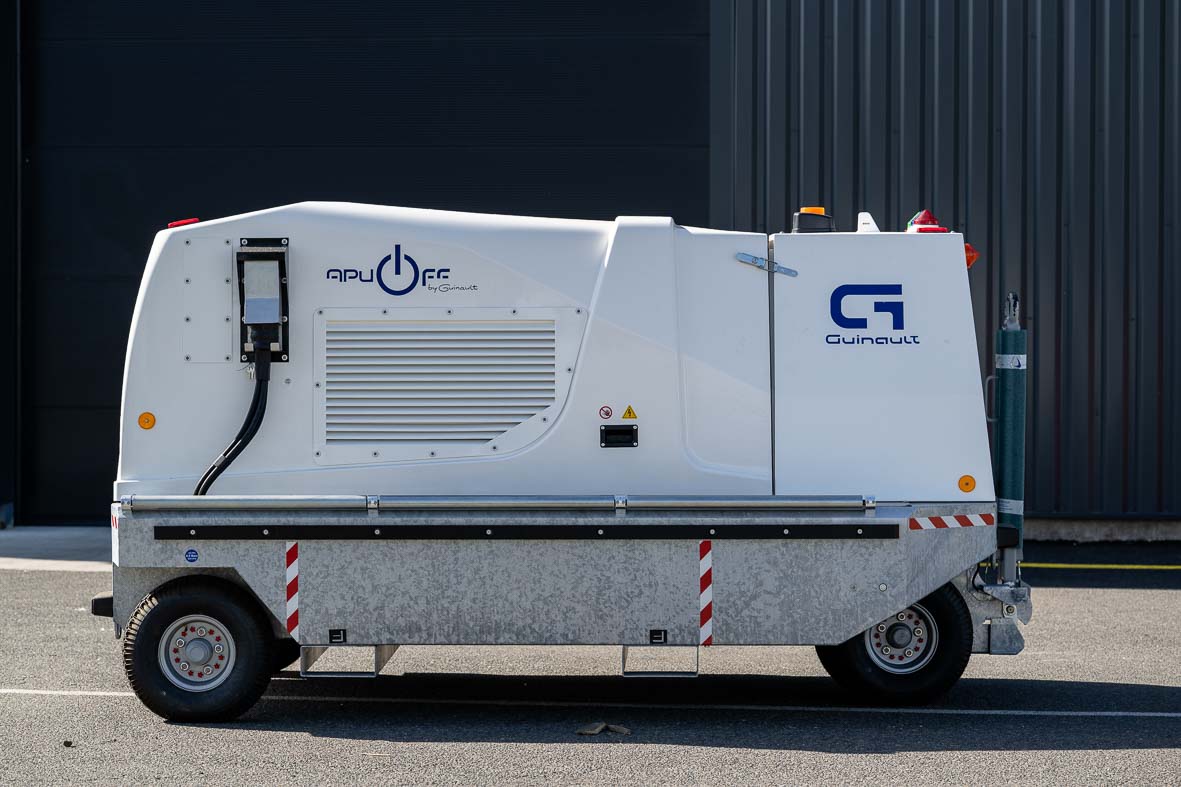

Aircraft ground power with zero local emissions. Aviation-compliant 400 Hz, industrial LFP batteries, and a unit engineered to be serviced on the apron — not sent back to the workshop.
0 g
Local emissions
234 kW
Max capacity
7 yr
Battery warranty
Explore the unit
GSE Lisbon · Booth H17
Why the EGA Series
Built to last, not to be replaced.

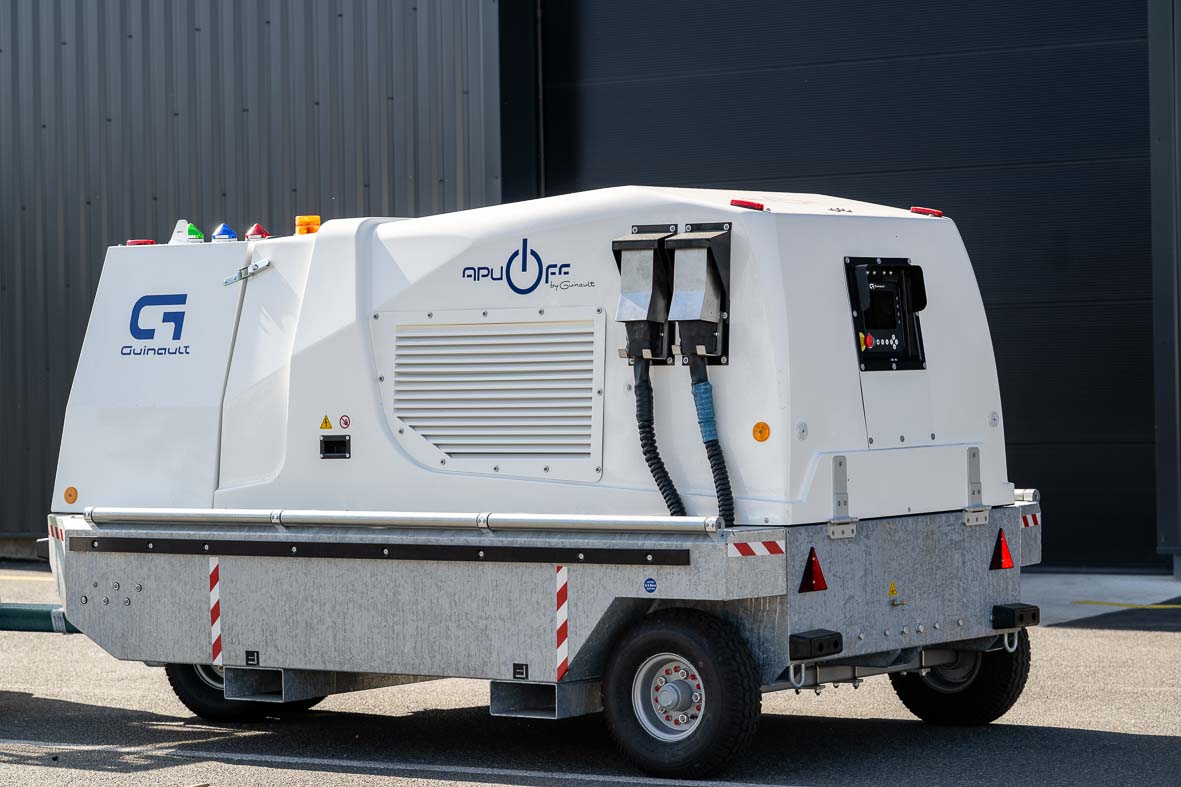

The GUINAULT EGA Series brings together our electrified Ground Power Units — a direct alternative to diesel GPUs, designed around three commitments.
Reliability
Sealed battery architecture featuring high-capacity LFP cells
Proven Lithium Iron Phosphate technology from 53.7 kW to 234 kW, sealed against apron conditions and sized for intensive duty cycles.
Accessibility
Easy access to cables, connections and compartments
External cable trays, network runs separated from aircraft power, and external terminals for all wiring. Cables are replaced without opening a single compartment.
Interactive walkthrough
Tap any point to open the detail.
Select a numbered point
A new generation of batteries
More capacity. More flexibility.
A new 117 kW LFP battery built on proven, highly reliable technology — available in five configurations so the unit is sized for the operation, not the other way round.
Modular architecture
1 × 53.7 kW
53.7 kW
2 × 53.7 kW
107.4 kW
1 × 117 kW
117 kW
1 × 117 kW + 1 × 53.7 kW
170.7 kW
2 × 117 kW
234 kW
Battery warranty
7years
A scalable investment that meets today's needs while remaining adaptable for tomorrow's requirements.
Suited for
Narrow-body
operations
Power sized for narrow-body turnarounds and intensive duty cycles, with headroom for maintenance activities and cabin comfort.
Charging power
30 / 60 / 90 kW
Stackable output
Network
50 & 60 Hz
Both frequencies supported
Connectors
Type 2 · CCS2
Standard EV charging interfaces
400 Hz charging
Supported
Within the 90 kW combined limit
At the heart of APU-OFF
Emissions at the stand, cut to a fraction.
−95%
The new eGPU fully supports APU-OFF initiatives, reducing emissions at the aircraft stand by up to 95 % compared with APU operation.
- Reduced CO₂ emissions
- Lower noise levels
- Reduced aircraft fuel consumption & maintenance costs
NBPT — No Break Power Transfer
Backup function via external GPU
Continuous power supply without interruption, even in the event of an internal failure. The aircraft never sees the transfer.
Field serviceability
Cable replacement without opening electrical or engine compartments
Fast intervention directly on the apron, with no complex dismantling and minimal equipment downtime.
Product brochure
Get the full EGA specification.
Enter your email and we'll send the complete product brochure straight to your inbox — including full technical data, configuration options and charging specifications.
- Complete technical datasheet for the EGA Series
- All five battery configurations, from 53.7 kW to 234 kW
- Charging infrastructure requirements and compatibility
- APU-OFF emission reduction methodology
